* supports 11 command model included
EPSON and logic control command.
* power supply from 5V to 12V to prevent any mindless use of improper power input.
* 20-columnx2 line dot matrix in a wide
viewing angle.
* Easy connectivity to a wide range of POS
products.
* OPOS/JPOS driver is standard.
download brochure
Copyright© 2014 sensonic. All rights reserved.
web browser compatibility: firefox ie
Site Map line
Product > POS > LD230

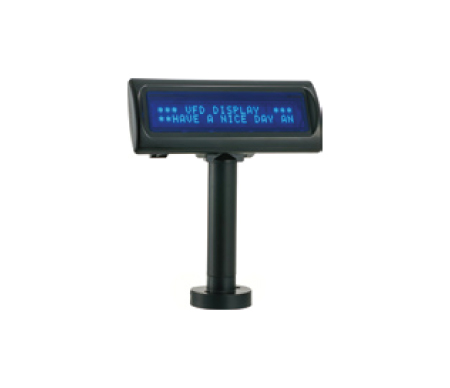

stand-alone model with round base

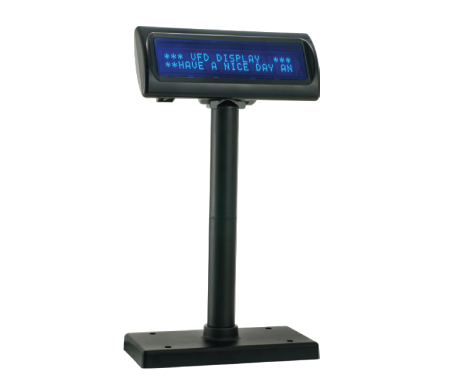

stand-alone model
with stretching pole
Specifications
general display method vacuum fluorescent display (blue-green)
  number of characters 40 (20 columns x 2 lines)
  brightness 500-1000 cd/m2
  character font 5x7 dot matrix, cursor
  character type 95 alphanumeric, 32 international characters
  character size 5.5(H)x9.2(W)mm
  dot size(XxY) 0.86x1.2mm
  download characters 9 characters
  panel dimention 220(W)x50(D)x87(H)mm
  pole dimension per support: 130(L)x34.5(dia)mm
  base dimension 217(W)x106(D)x33(H)mm
  viewing angle max 90°
  horizontal rotation max 355°
  weight approx 980 grams
commands mode UlTIMATE, LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
language support US English, Int'l English, Bosnia, Croatian, Czech, Danish,
Dutch, Estonian, Faroese, Finnish, Flemish, French, Fr
Canadian, German, Greek, Hebrew, Hungarian,
Icelandic, Indonesian, Irish, Italian, Katakana, Latvian,
Lithuanian, Norwegian, Polish, Portuguese, Romanian,
Russian, Slovene, Slovak, Spanish, Swedish.
interface   RS-232 (serial)/USB
connection baud rate direct connection 9600 or 19,200 bps
reliability MTBF 30,000 hours
power consumption 5~12VDC

Home About Us Product Support Contact Us Events Where to buy
line line
German
line
Spanish
line
French

home
POS
bullet cash drawer
bullet receipt printer
bullet customer display
bullet second display
bullet barcode scanner
bullet wireless barcode scanner
Computer Peripherals
bullet wired mouse
bullet cordless mouse
bullet cordless Glaser mouse
bullet wired keyboard
bullet wired desktop
bullet cordless desktop
bullet 2.0 speaker
bullet 2.1 speaker
bullet wired headset
bullet bluetooth headset
bullet earphone
bullet
webcam
bullet
USB Hub
bullet mobile storge
bullet
travel smart
bullet presenter
bullet flash drive
bullet gaming keyboard
bullet gaming mouse
bullet gaming desktop
bullet bluetooth speaker
Personal Computing
bullet LED monitor
bullet
AIO PC
bullet
MID
GPS

Power Protection

Digital Signage
bullet projector screen
Mobile Communication
bullet Smartphone

round base and pole
adapter are for optional
stand-alone model with 2 poles
cool white available

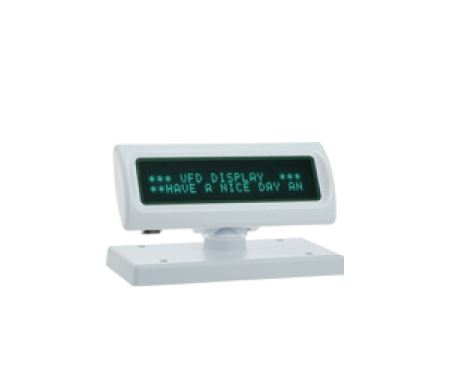

attached to base without poles
