Product > POS > SGT8300L

Eletrical Specification
resolution 0.10mm(4mil)
voltage requirement DC5V
current consumption 1500MA high-capacity lithium battery
charging time 10 hours
optical specifications
light source 650nm Nano visible laser diode
scan mode Manual and automatic
scan rate 100 Times/SEC
decode rate 300 decodes/sec
reading pitch angle +/-60°
reading skew angle +/-45°
reading rotation angle 15°
support barcode symbologies EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber,
Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China's postal code
functionality
communication distance: Empty place can reach 1200 meters, indoor for 300 meters
Six Floors of building barrier-free communication
working frequency 433MHz ISM frequency range
physical spec
dimension 160mm(L) x 65mm(W) x 85mm(H)
case material ABS/PC
weight body 280g ( Excluding packaging)
cable length 2m
memory 4M, can expand to 8M
by light intensity Sunlight 4000lux max
connector RS232 DB9(MALE)
connector USB USB-A(2.0)
Specifications

Home About Us Product Support Contact Us Events Where to buy
line
中文
line
German
line
Spanish
line
French

home
POS
bullet cash drawer
bullet receipt printer
bullet barcode scanner
bullet wireless barcode scanner
bullet bluetooth portable printer
bullet omniscanner
bullet 15" AIO POS
Computer Peripherals
bullet cordless mouse
bullet wired keyboard
bullet wired desktop
bullet cordless desktop
bullet 2.0 speaker
bullet 2.1 speaker
bullet wired headset
bullet bluetooth headset
bullet earphone
bullet
webcam
bullet mobile storge
bullet
travel smart
bullet presenter
bullet gaming mouse
bullet gaming desktop
bullet bluetooth speaker
bullet bluetooth keyboard
Personal Computing
bullet AIO PC

Power Protection

Digital Signage
bullet projector screen
Mobile Communication
bullet Smartphone


Feature

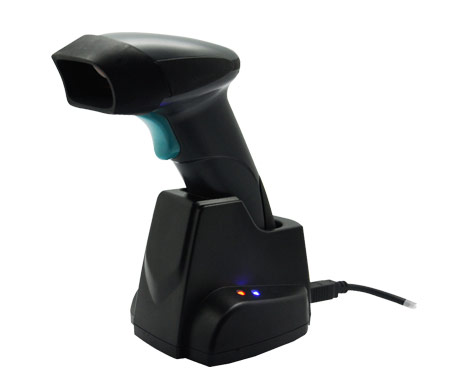

- put scanner on stand, scanner will charge power automaticly
