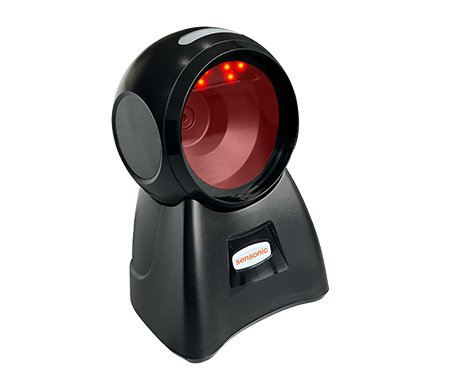

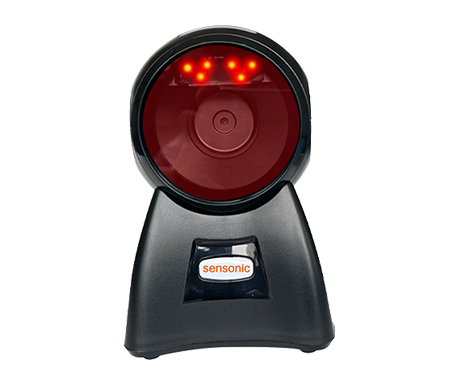

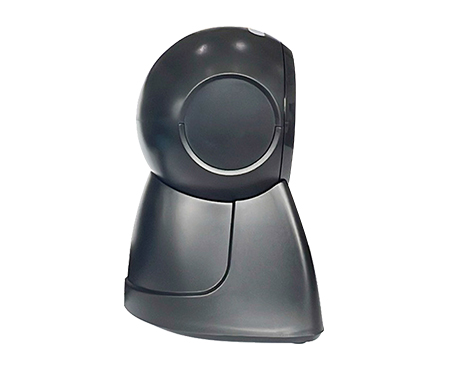

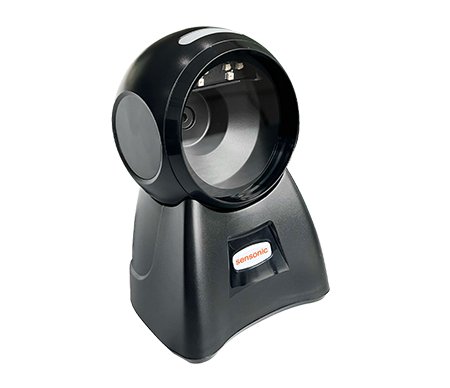

Product > POS > SGT8801

• Fast Decoding Speed - Strong recognition
• Excellent Decoding Ability - Easily capture 1D/2D barcode
• Incredibly Powerful
- 32bit arm processor
• Quality Material
- ABS + PC (Flame Retardant Material)
• Widely Application
- Used in many fields (Market, Medical, etc)
• Plug & Play - USB cable length: 5.9ft

Technical Parameters
Scanning Gun Size 32-bit ARM processor
Weight 190g
Light Source Red LED, 650mm LED
Image Sensor 300thound pixels Global shutter/CMOS
Depth of Field 0-1500mm (13Mil EAN/UPC 100% PCS=90%)
Max Resolution 640*480px
Scan Direction Global
Scan Speed 60fps/s
Scan Angle Deflection 360° Tilt±65°Rotate±60°
Supported Symbologies

1D:EAN,UPC,CODE39(with full ASCI)Codabar,code 128,code93,Code11,intervelated 2 of 5,industrial 2 of 5,Matrix 2 of 5,MSI Plessy,GS1 Databar,etc
2D: QR Code,PDF417,Data Matrix,etc

Interface USB-HID,USB-VCP,RS232
Material ABS+PC (Flame Retardant Material)
Electric Current

3.3V DC±5%@280mA

Battery Capacity 1200mAh
Charging Time Less than 3 hours
Standby Time More than 3 days
Working Current Stanby less than 5mA, work: 210mA
Usage Time More than 70hours, time/5seconds
Specifications
