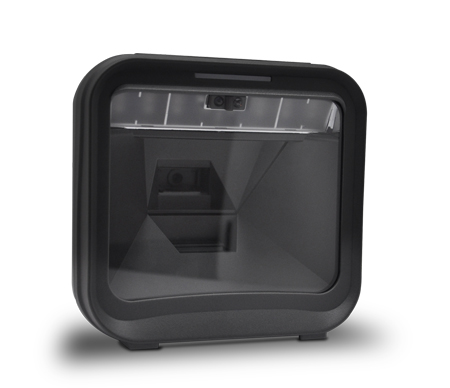

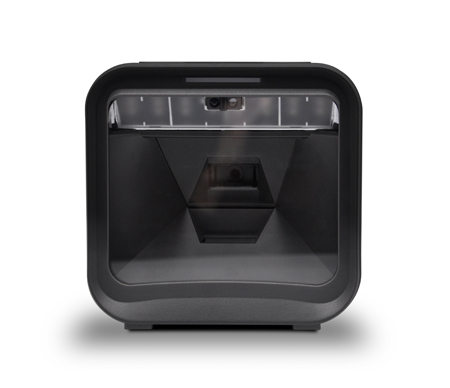

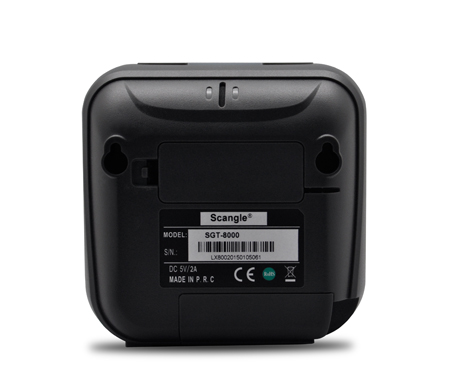

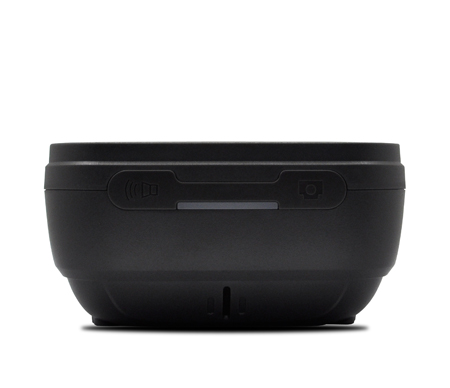

Product > POS > SGT8000
Dimensions
(HxWxD) 152mm x 81mm x 144mm
weight 543g
cable straight 2.0cm
connector type RJ-45 phone jack connector
case material PC+ABS
indicator Beeper, LED
interface supported Keyboard wedge, RS-232, USB Keyboard, USB virtual COM
Electrical
input voltage 5 VDC ± 0.25V
power 5.00W (working); 0.40W (standby)
current 1000mA (working); 80mA (standby)
Scan Performance
image size 1280 × 960 pixels
scanning angle ±60°, ±40°, 360° (Skew, Pitch, Roll)
decode capability

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN,
Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/ Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants, Telepen

min. element width 4mil, 1mil = 0.0254mm
decoding depth

4mil Code39 (9 chars): 5mm - 60mm
5mil Code39 (3 chars): 0mm - 100mm
10mil Code39 (3 chars): 0mm - 148mm
13mil UPC (6 chars): 0mm - 170mm
15mil Code39 (1 chars): 0mm - 193mm
20mil Code39 (1 chars): 0mm - 220mm

Environmental

temperature

0° to 50°C (32° to 122°F), Operating; -40° to 70°C (-40° to 158°F), Storage

humidity 5% to 95% (non-condensing)
Specifications

Home About Us Product Support Contact Us Events Where to buy
line
中文
line
German
line
Spanish
line
French

home
POS
bullet cash drawer
bullet receipt printer
bullet barcode scanner
bullet wireless barcode scanner
bullet bluetooth portable printer
bullet omniscanner
bullet 15" AIO POS
Computer Peripherals
bullet cordless mouse
bullet wired keyboard
bullet wired desktop
bullet cordless desktop
bullet 2.0 speaker
bullet 2.1 speaker
bullet wired headset
bullet bluetooth headset
bullet earphone
bullet
webcam
bullet mobile storge
bullet
travel smart
bullet presenter
bullet gaming mouse
bullet gaming desktop
bullet bluetooth speaker
bullet bluetooth keyboard
Personal Computing
bullet
AIO PC

Power Protection

Digital Signage
bullet projector screen
Mobile Communication
bullet Smartphone


Feature
- Read all major 1D symbols
- High performance imaging technology
- Read symbols from mobile phones/ inverse symbols
- Good at capturing hard-to-read symbols ie truncated (short), out-of-spec and poorly printed
- Decode rate: up to 45 frames/sec
