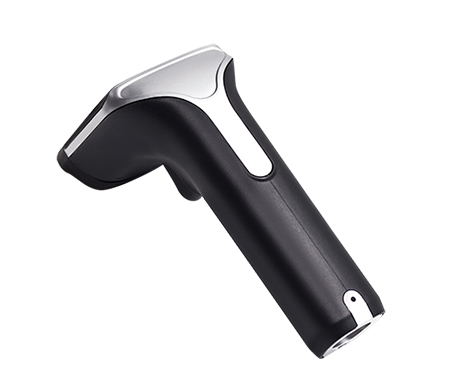

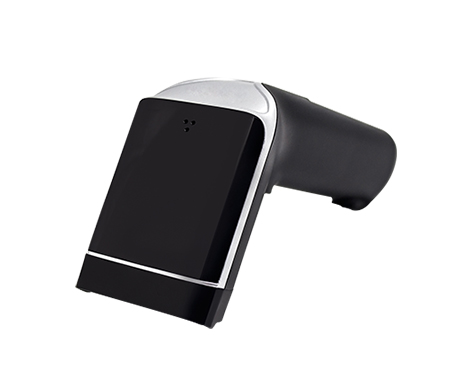

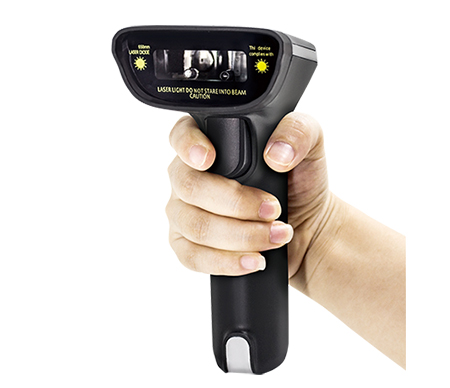

Product > POS > SGT4600B


• Resolution - 640 x 480 CMOS
• Type- 2D Handheld Barcode Scanner
• Scan Mode - Trigger Mode, Auto-sense Mode, Continuous Mode
• Scanning Accurancy- ≥4mil/0.1mm (PCS90%, CODE 39)
• Transfer Mode - 2G
Physical Features
Dimension (LxWxH) 145mmx65mmx80mm
Weight 350g
Electrical Features
Input Voltage 3.3V
Working Current 290mA±5%
Standby Current 20mA
Interface USB+2.4G
Battery Capacity 1800mA
Using Environment
Working Temperature 0°C±50°C
Storage Temperature -40°C±70°C
Humidity 5% to 55% relative humidity (no condensation)
Drop Resistance Resist several times 1.5M drops to concrete
Ambient Light 0-100000LUX
Scanning Performance
Rotation Angle Corner 360°
Point Contrast ≥25%
Angle of Pitch Pitch ± 55°
Angle of Skew Skew ± 55°
Decode Types 2D-QR CODE, DATA MATRIX, PDF417, AZTEC, MAXICODE, Hanxin 10,
EAN, UPC, CODE 39, CODE 93, CODE 128, UCC/EAN 128, CODABAR,
INTERLEAVED 2 OF 5, ITF-6, ITF-14, ISBN, ISSN, MSI-PLESSEY, GSI DATABAR, GSI COMPOSITE CODE, CODE 11, INSUTRIAL 25, STANDARD 25, PLESSEY, MATRIX 2 OF 5
Specifications

Home About Us Product Support Contact Us Events Where to buy
line
中文
 line
German
 line
Spanish
 line
French

home
POS
bullet cash drawer
bullet receipt printer
bullet barcode scanner
bullet wireless barcode scanner
bullet bluetooth portable printer
bullet omniscanner
bullet 15" AIO POS
Computer Peripherals
bullet cordless mouse
bullet cordless desktop
bullet wired mouse
bullet wired keyboard
bullet 2.0 speaker
bullet 2.1 speaker
bullet wired headset
bullet earphone
bullet webcam
bullet travel smart
bullet gaming mouse
bullet gaming desktop
bullet bluetooth speaker
bullet bluetooth keyboard
Personal Computing
bullet AIO PC

Power Protection
Digital Signage
bullet projector screen
Mobile Communication
bullet Smartphone


Features
• RF uses 2.4G wireless data transmission module. The receiver is a mini USB module.
• Support wired & wireless mode. USB cable can be used for charging & wired transmission.
• 250k wireless transmission rate, extremely fast transmission speed.
• Automatic sleep, sleep current is less than 1UA, stanby time can reach 90 days.
• The latest mobile phone fast charging technology can complete one charge in 3 hours, and a dedicated
charging circuit ensures charging safely.
• The battery has a capacity of 1800mAh, and can be scanned 5,000 times a day after a single charge and
it can work continuously for 10 days.
