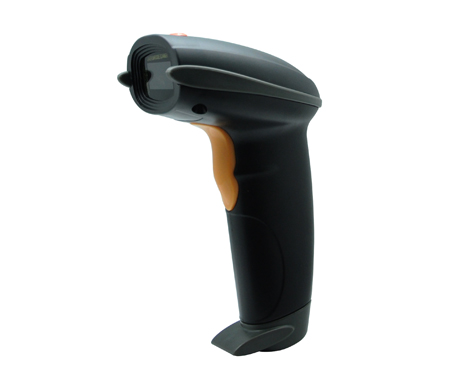

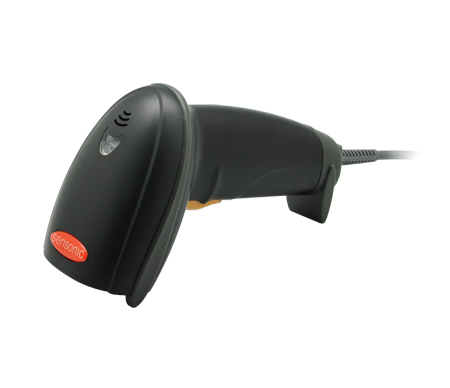

Product > POS > SGT4209-AP

Eletrical Specification
resolution 3 mil
voltage requirement DC5V
current consumption max 60mA
idle current 20mA
optical specifications
light source 670nm
scan rate vibrating mirror
decode rate 120 scan/sec
reading pitch angle 300 decodes/sec
reading skew angle +/-60°
reading rotation angle +/-30°
reading width 15°
support barcode symbologies ChinesePost, Codebar,Code39,Code128,Ean8,Ean13,Ean128, ISBN, ISSN, Industrial 2of5, Interleaved 2of5, MSI/Plessey,UPC
functionality
trigger mode manual, auto-trigger, auto sensor
available interface keyboard wedge: XT/AT & PS2, RS232, USB
physical spec
dimension 63(L)x87(W)x165(D)mm
case material ABS, PS, PC
weight body 145g (EXCL cable)
cable length 2m
connector keyboard wedge mini DIN6
connector RS232 DB9 (MALE)
connector USB USB-A (2.0)
Specifications
