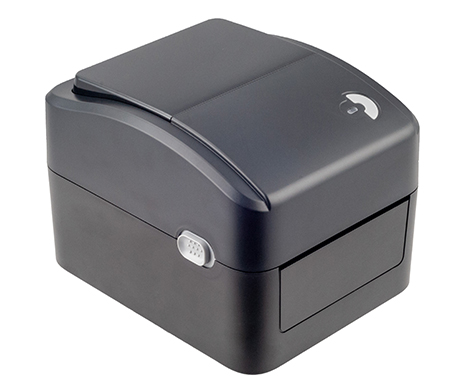

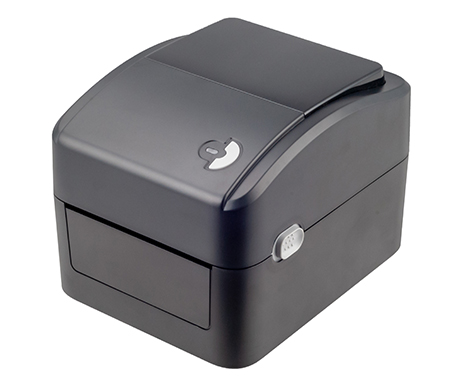

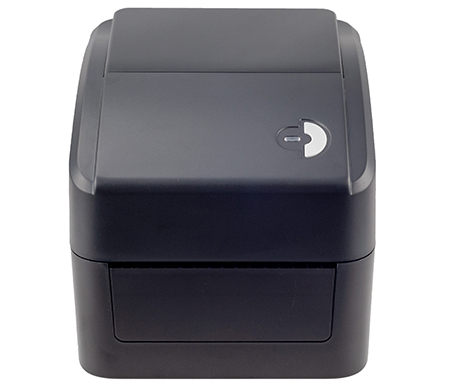

Product > POS > Thermal Barcode Printer > 420B
Specifications
PRINTING FEATURES
Resolution
  203dpi
Print Method
  Direct Thermal
Print Speed
  152mm(6”)/s
Max. Print Width
  108mm (4.25”)
Max. Print Length
  1778mm (70”)
MEDIA

Media Type
  Continuous, gap, black mark. fan-fold and punched hole
Media Width
  25.4mm ~ 115mm
Media Thickness
  0.06 ~ 0.254mm (2.36 ~ 10mil)
Media Core Diameter
  25.4 ~ 76.2mm (1” ~3”)
Label Length


10~1778mm (0.39” ~ 70”)

PERFORMANCE FEATURES

Processor
  32-bit CPU
Memory
  8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded max. 4GB
FONTS/GRAPHICS/SYMBOLOGIES

Internal Fonts
  8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
1D Barcode
  Code 39, Code 93. Code 128UCC, Code 128 subsets A, B, C, D, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN, UPC-2(5) digits add-on, MSI, PLESSY, POSTNET, China POST, GS1 Data Bar., CODE 11
2D Barcode
  PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Rotation
  0º, 90º, 180º, 270º
Emulation
  TSPL, EPL, ZPL, DPL
PYHSICAL FEATURES

Dimension
  215mm (L) x 178mm(W) x 155mm(H)
Weight
  1.31 kg
POWER SUPPLY

Input
  AC 110-240V
Output
  DC 24V 2.5A
GENERAL SPECIFICATIONS

Operating System
  • Modern appearance design
• Faster printing speed, 6 inches 152mm/s, to improve the daily efficiency
• 8MB SDRAM & 8MB Flash memory for a more flexible usage
• Rich emulation languange compability: TSPL, ZPL, EPL, DPL
